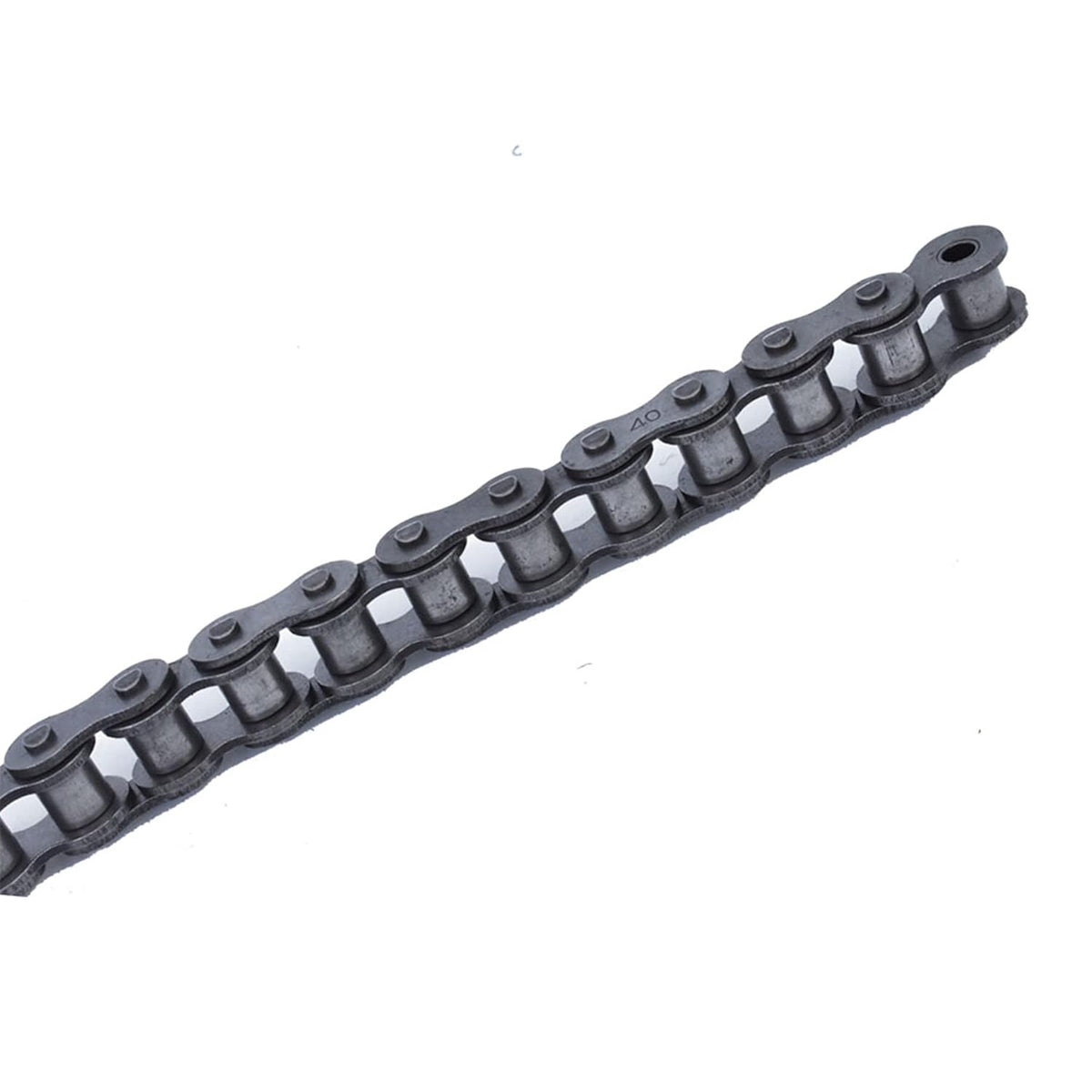

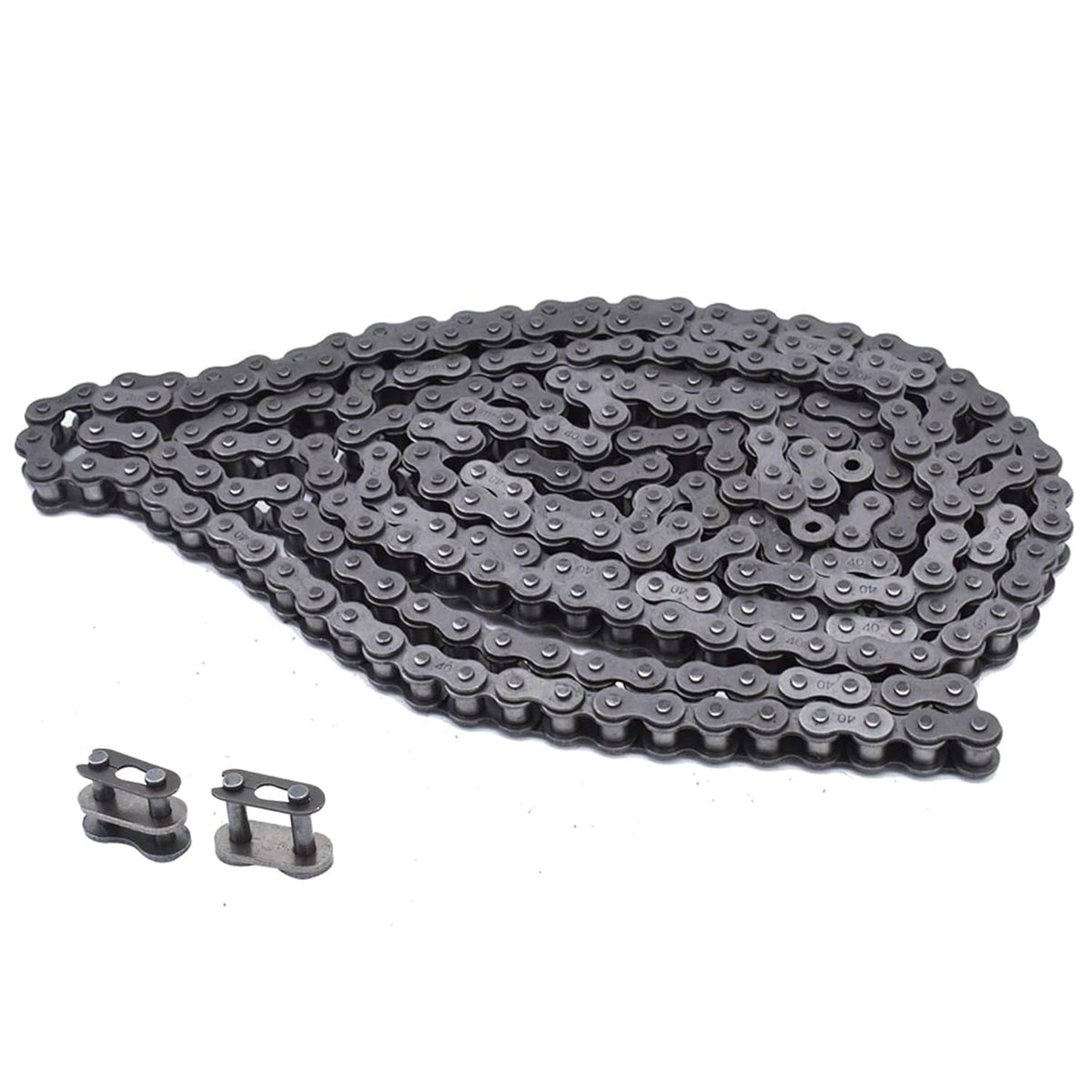

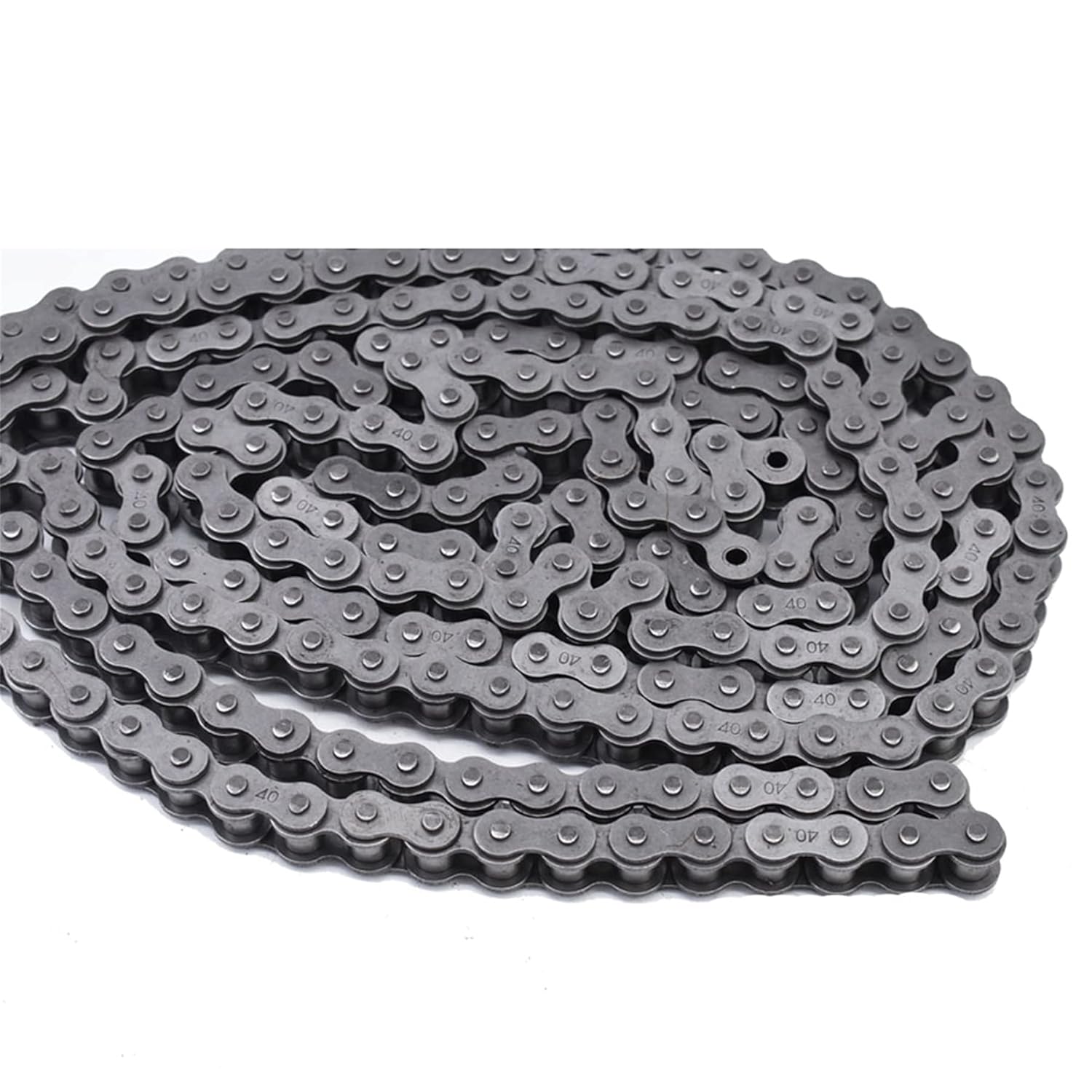

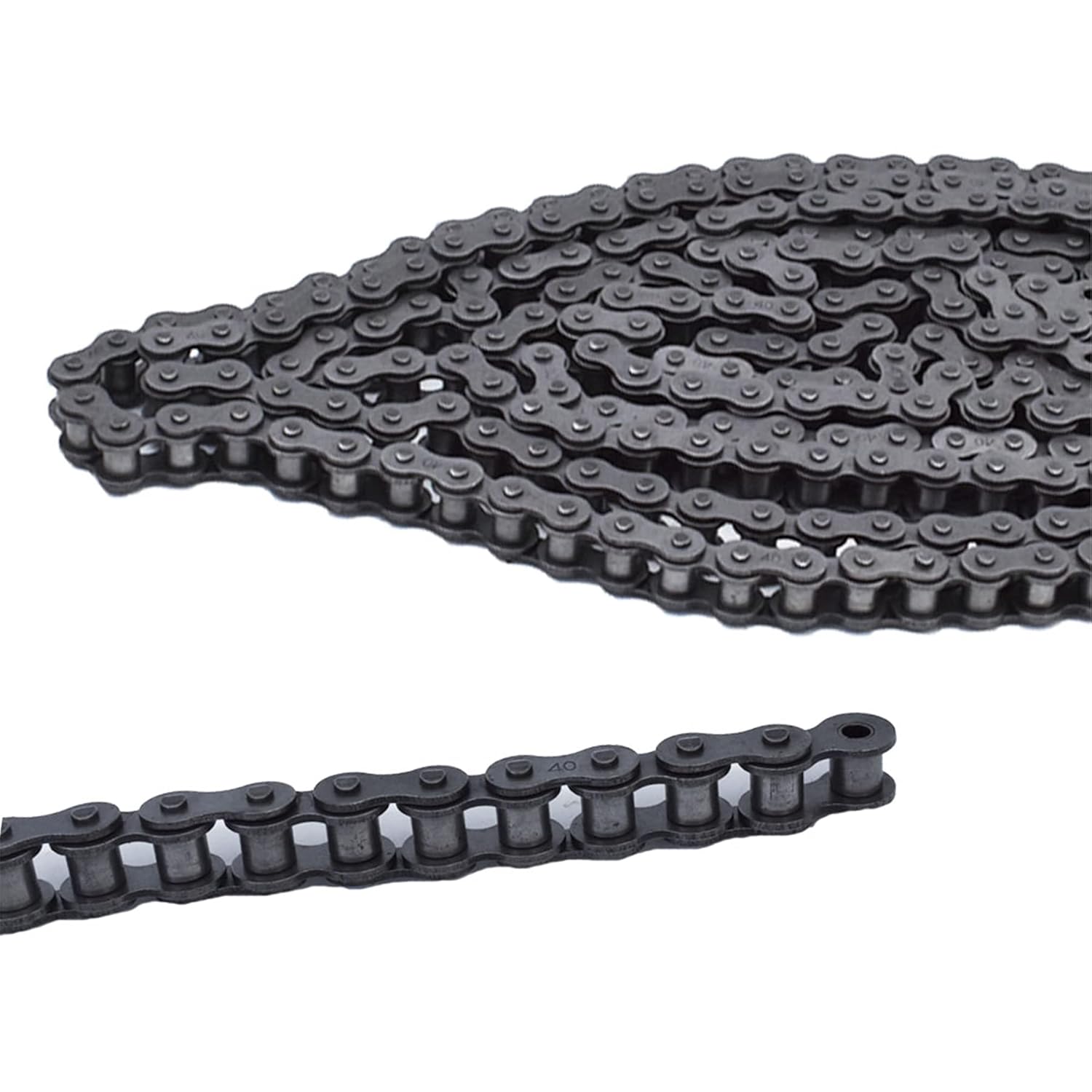

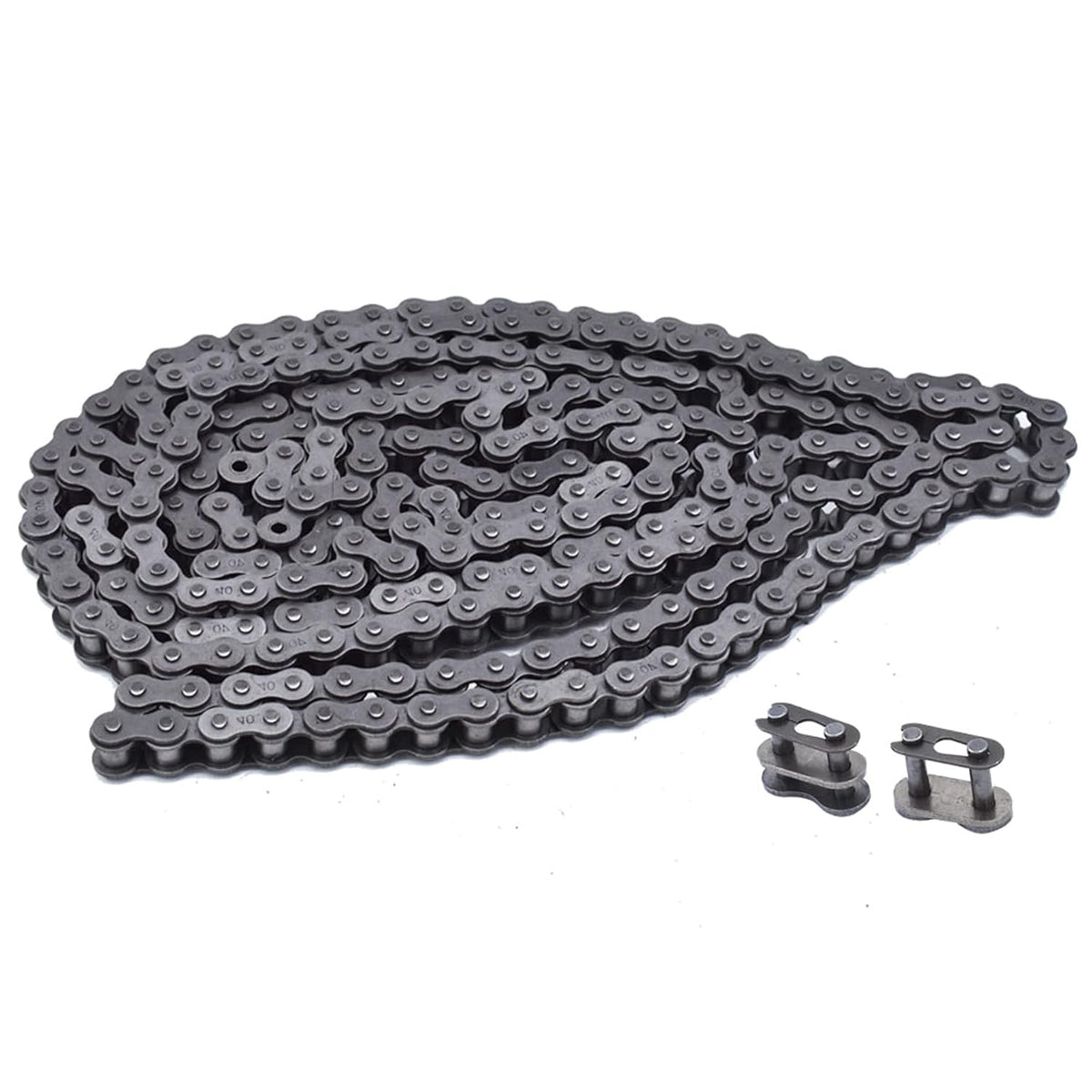

Roller Chain 40 10 Feet with 2 Connecting Links X91776
Sale price
$17.90
Regular price $55.48
Skip to product information

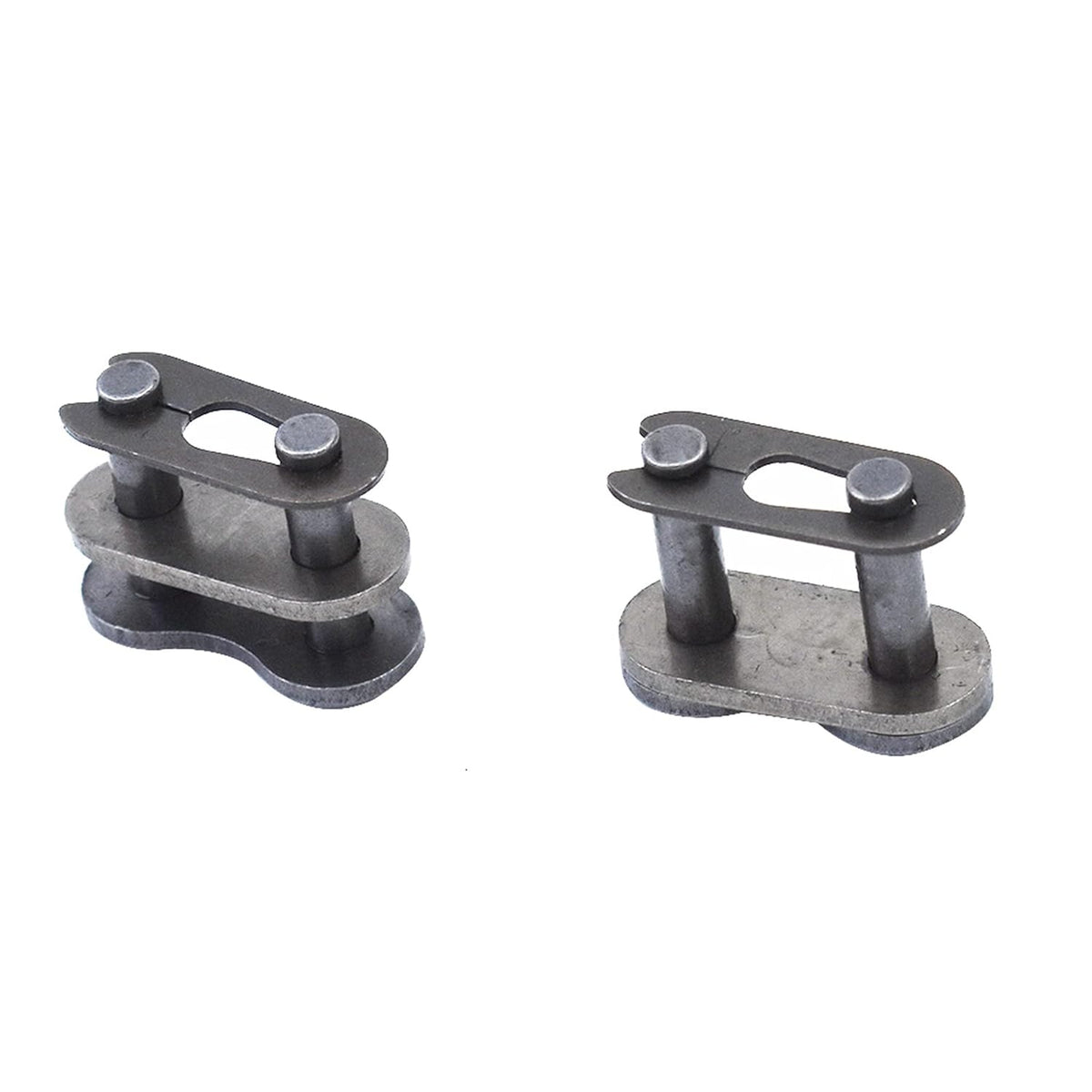

40 Roller Chain with 2 Connecting Link (One connecting link is on the chain)
Length: 10 Feet
100% tested before shipping
Heat-treated side plates to ensure the strength and durability of the roller chain
Suitable for Go-karts, Scooters, Mini Bikes Chain Replacements
Roller Chain 40 10 Feet with 2 Connecting Links X91776
Sale price
$17.90
Regular price $55.48
Shipping calculated at checkout.
40 Roller Chain with 2 Connecting Link (One connecting link is on the chain)
Length: 10 Feet
100% tested before shipping
Heat-treated side plates to ensure the strength and durability of the roller chain
Suitable for Go-karts, Scooters, Mini Bikes Chain Replacements
Material: Carbon Steel
Length: 10 Feet
Pitch Size (p) : 0.500 Inch
Roller Diameter (d1 max) : 0.312 Inch
Width Between Inner Plates (b1 min) : 0.309 Inch
Pin Diameter (d2 max) : 0.156 Inch
Pin Length (L max) : 0.654 Inch
Pin Length (Lc max) : 0.701 Inch
Inner Plate Depth (h2 max) : 0.472 Inch
Plate Thickness (T max) : 0.059 Inch
Average Tensile Strength: 4000 lb
Weight Per Foot: 0.415 lbs
Note:
One connecting link is on the chain
