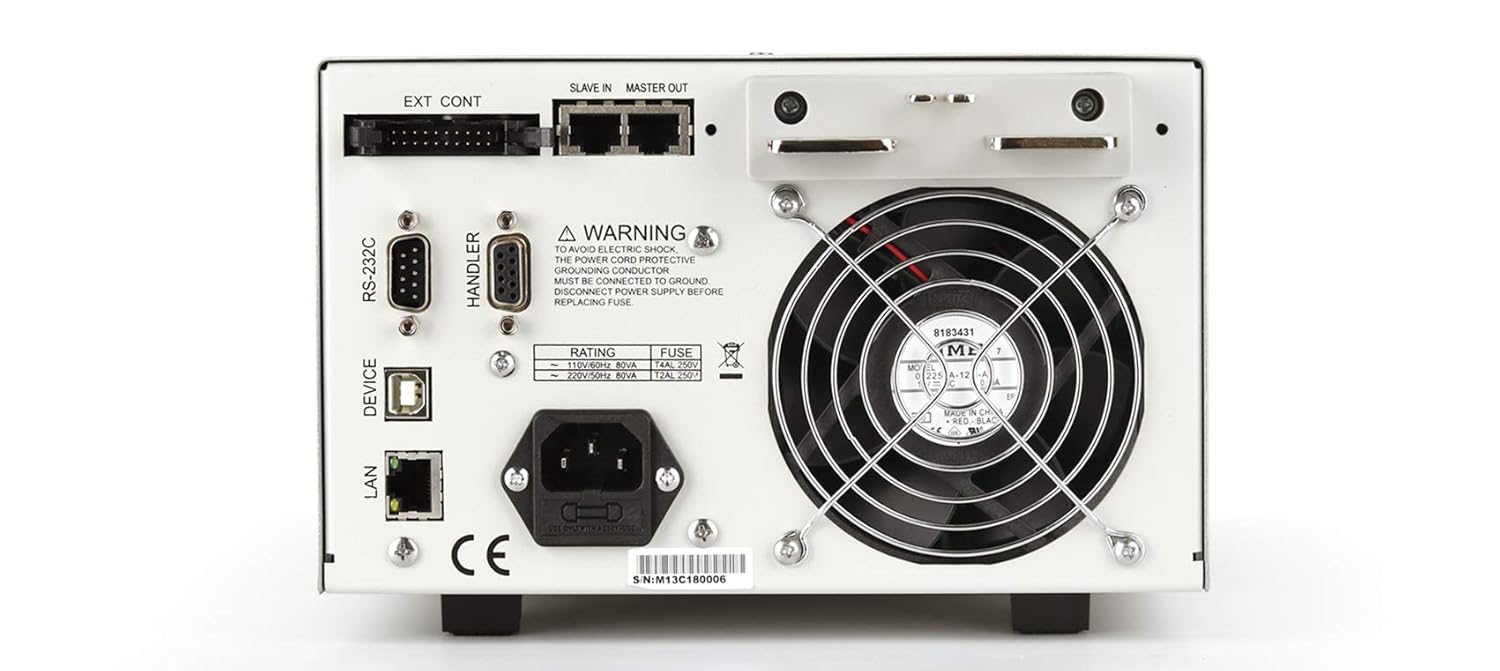

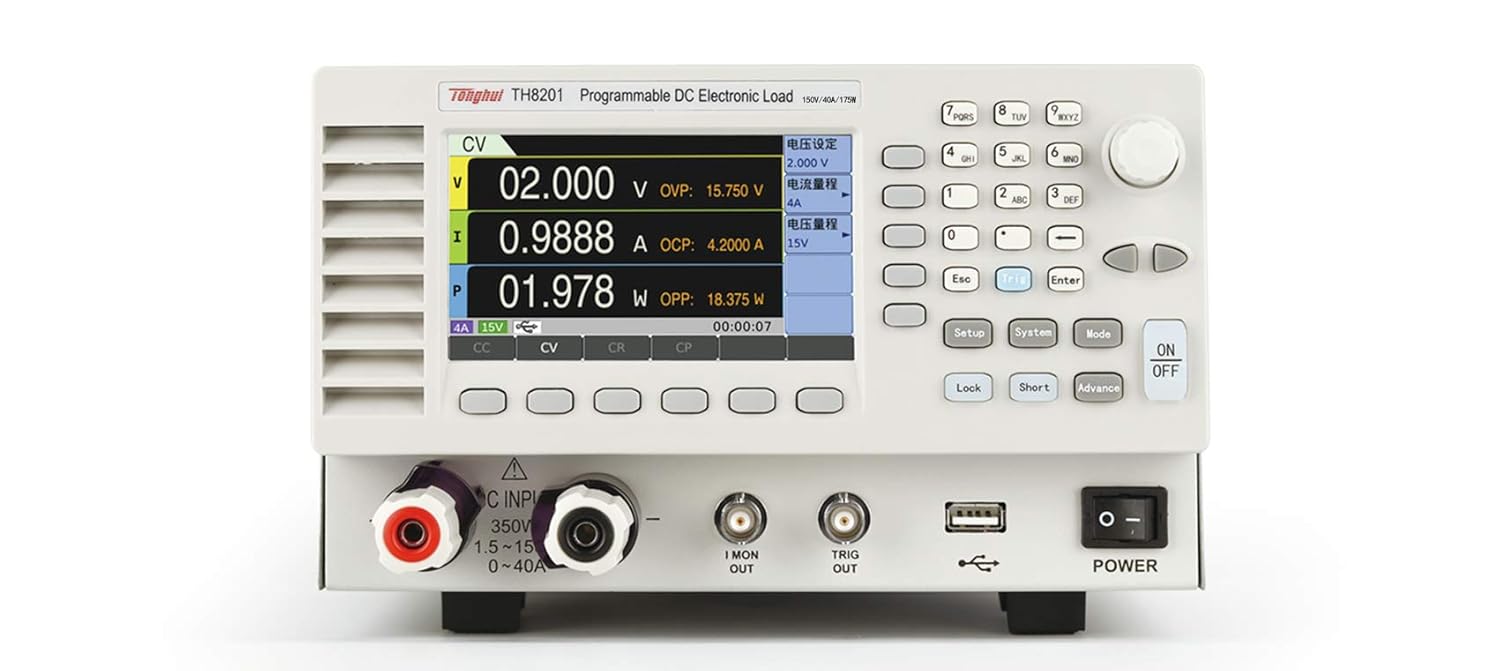

Programmable DC Electronic Load Battery Load Tester F648993

Features ■ Constant current (CC), constant resistance (CR), constant power (CV), constant power (CP) operation mode ■ Current remote control monitoring function, external trigger function ■ 1mV/10μA high resolution, ripple measurement function ■ Dynamic current/voltage test, up to 50K dynamic frequency ■ Voltage and current measurement can achieve high precision while testing speed up to 100KHz ■ Programmable soft start function ■ CR-LED test, arbitrary I-V characteristics, battery test, dynamic scan test, load effect, list function and many other advanced functions ■ Overvoltage (programmable), low voltage, over current (programmable), overpower (programmable), overheating, anti?reverse protection, etc. ■ Remote voltage compensation input test function ■ Short circuit function simulation ■ The adoption of the Linux operating system makes the number of internal parameter file storages essentially unrestricted ■ Perfect U disk function (parameter file storage and loading, interface screenshot, system firmware upgrade) ■ Setting parameters support power-off memory function ■ Intelligent temperature control fan ■ RS232 (standard), USB (standard), Ethernet (standard), WIFI (optional) ■ Matching with upper-computer software to achieve remote operation and monitoring matching
